The Problem
I have to investigate and get familiar with a large Java framework. It consists of many different modules glued together with Maven. The Maven POM files are everywhere and it is difficult to read them. Are there any tools that can help me learn the content of this large Maven repository?

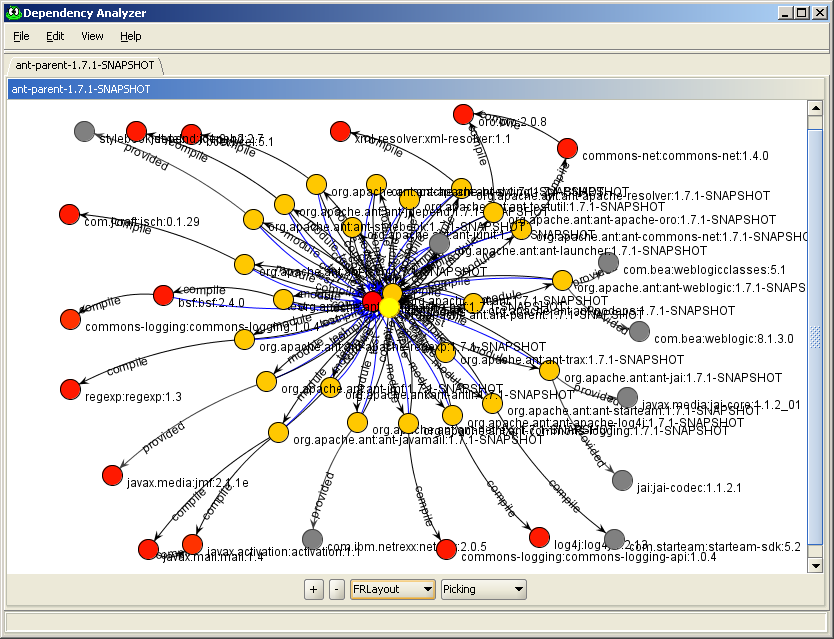

Yes! The Dependency Analyzer is a great tool by Dror Bereznitsky just for this purpose. The tool walks the Maven dependencies for your project, pretty graphs come out at the other end. For example: here is the Apache Ant 1.7.1 POM dependency graph:
What is missing is the ability to export the graph and I need the data exported for further analysis. In this post I will show you how to patch Dependency Analyzer to add GraphML export.
The Solution
The internal design of Dependency Analyzer 1.1-rc1 was very clean. The Dror Bereznitsky and a team did a great job of putting together a text book quality Swing application.
It was necessary to patch only two files: org.jfrog.maven.viewer.common.jung.JungHelper and org.jfrog.maven.viewer.ui.command.SaveAsCommand. I have added a new file format "graphml" to the SaveAsCommand and hooked up the GraphML generation to the JungHelper. To see it working, open the desired POM file into the Dependency Analyzer. Go to File | Save As menu and choose a file name. Press Enter. Here is the ant-1.7.1.graphml produced.

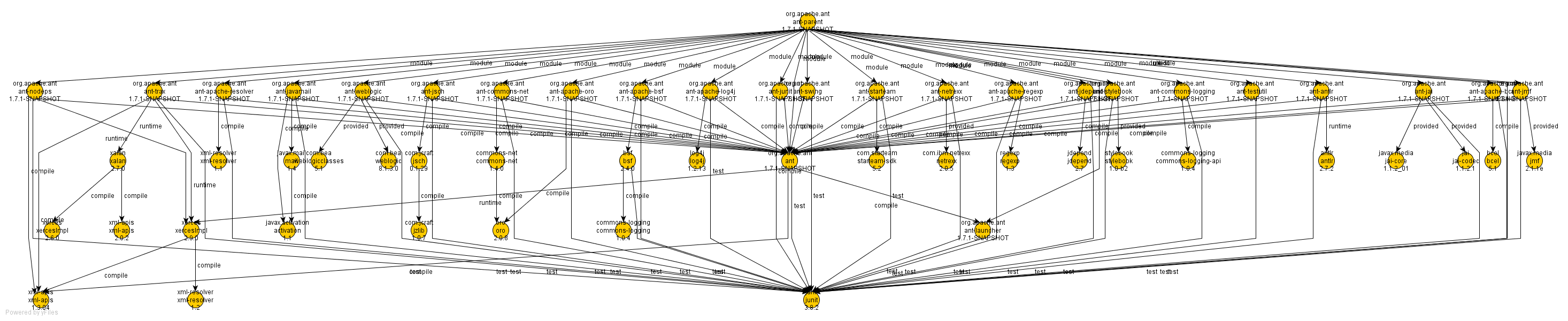

The GraphML is very convenient format for exporting graphs. My favorite tool for viewing and laying out the graphs in GraphML is yEd. Simply open the ant-1.7.1.graphml file above using yEd. Go to Layout | Hierarchical | Classic and press Enter. Here is the layout:
The Download
You can download the source for the patch described above. I also have a new distribution of Dependency Analyzer with the above changes dependency-analyzer-1.1-rc1.zip.
The Final Word
Maven kicks butt. Compared to Ant, it has much more metadata about the artifacts and their source, build, test and deploy dependencies. But dude... Do we really need 1,000,000 lines of code just to run Ant? Scarry...
